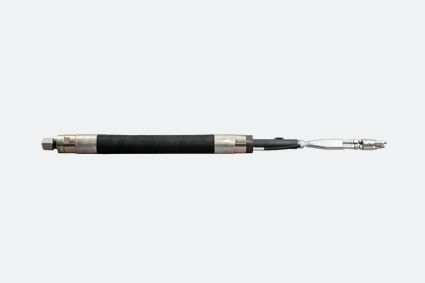

2C inflatable packer TPE 57
for borehole-Ø 57-87 mm

Materiale in ingresso
  • acrylate gel
  • silicate resin
  • 2C injection resin
  • 2C polyurethane
Dati tecnici
Type 2C-TPE 57
Borehole Ø min.-max. 57-87 mm
Borehole Ø 57 mm max. expansion pressure 200 bar, max. injection pressure 180 bar
Borehole Ø 65 mm max. expansion pressure 130 bar, max. injection pressure 110 bar
Borehole Ø 74 mm max. expansion pressure 100 bar, max. injection pressure 80 bar
Borehole Ø 86 mm max. expansion pressure 80 bar, max. injection pressure 50 bar
Inflation hose length 500 mm
Free passage Ø 12 mm

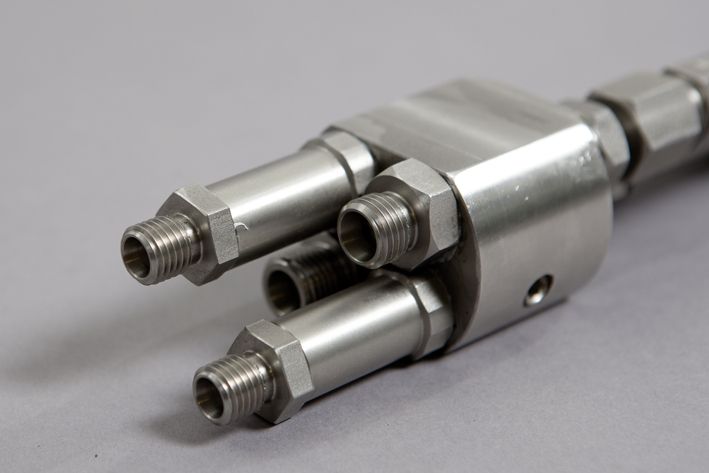

Connection thread for material hose outside comp. A M16x1.5
Connection thread for material hose outside comp. B M14x1.5
Connection thread for material hose outside rinsing pump 2 x M12x1.5
Connection thread for expansion line inside M8x1
Weight 6.86 kg
Total length 1.385 mm

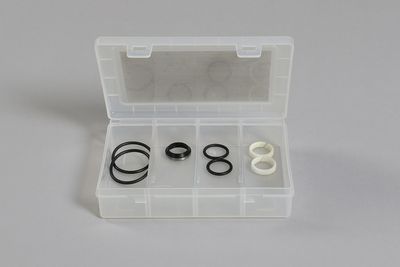

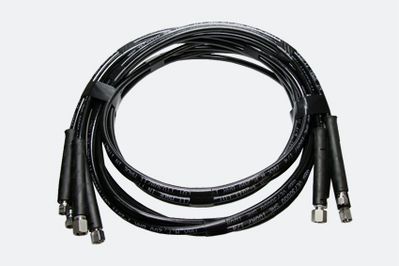

Accessori
