DESOI w.i.l.m.a. - Z

Flyer - DESOI w.i.l.m.a.

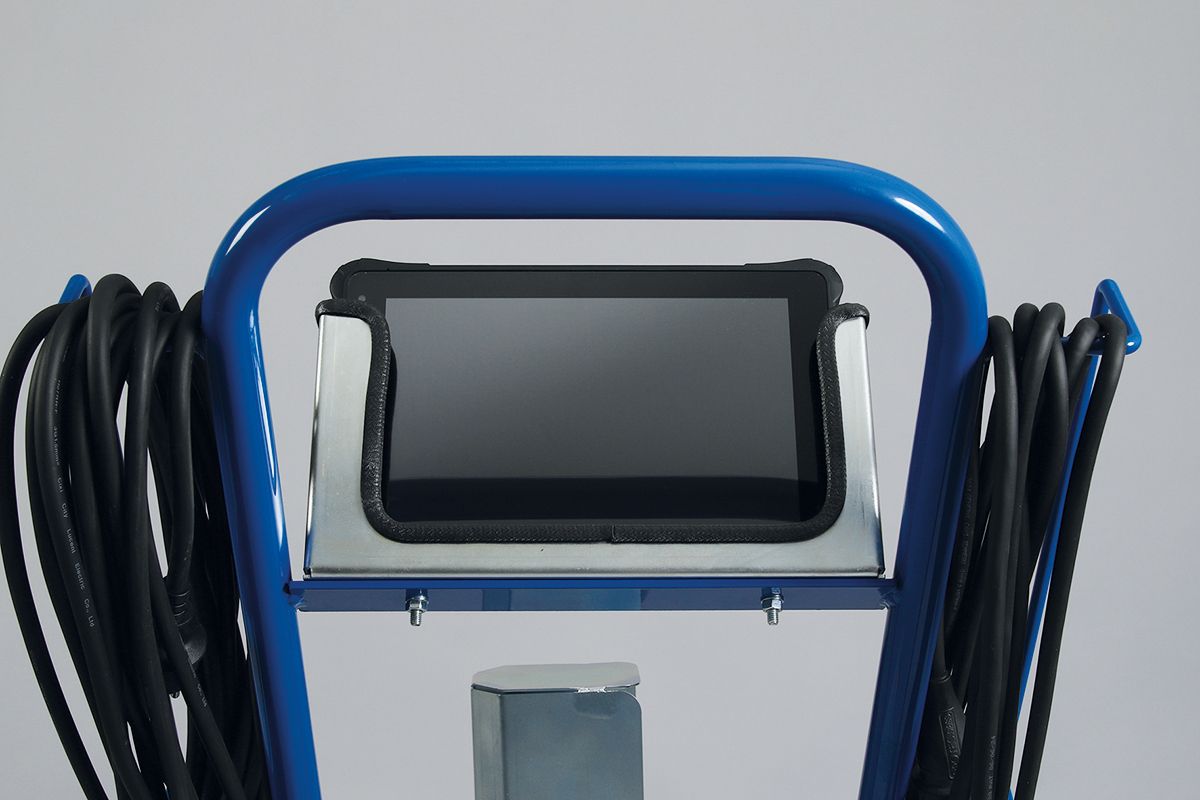

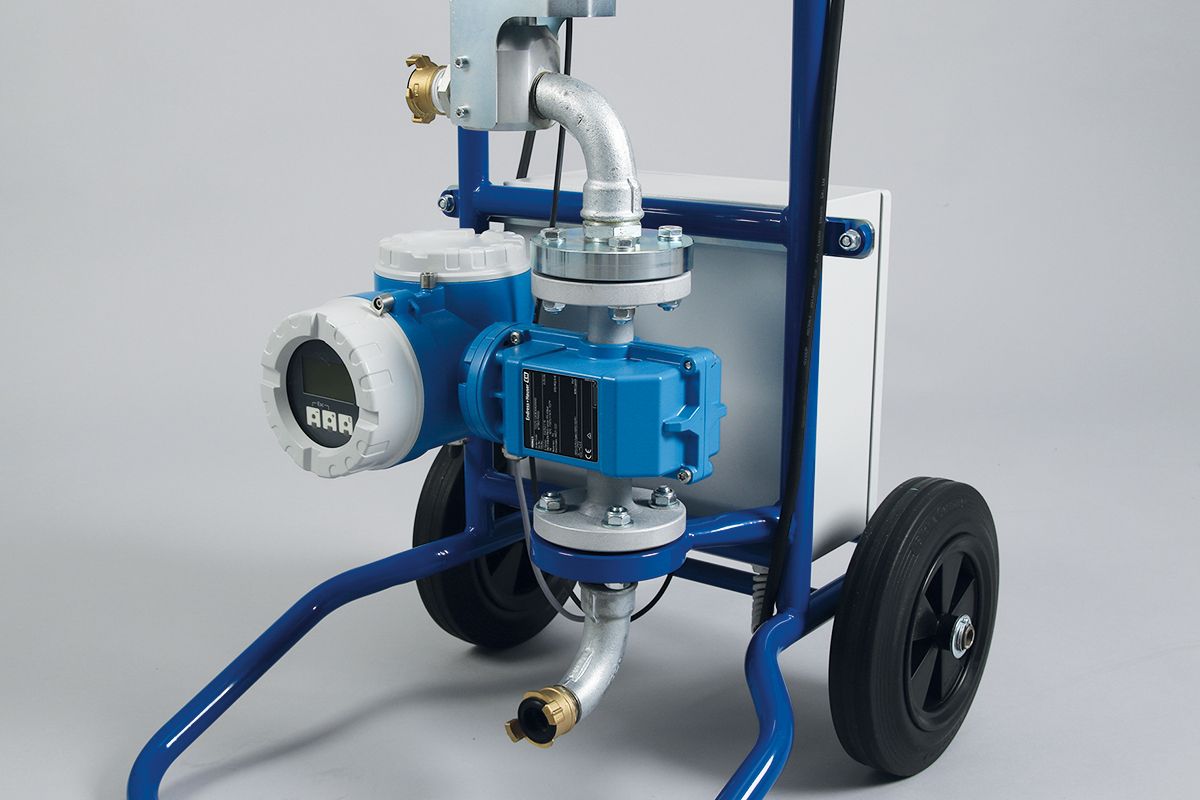

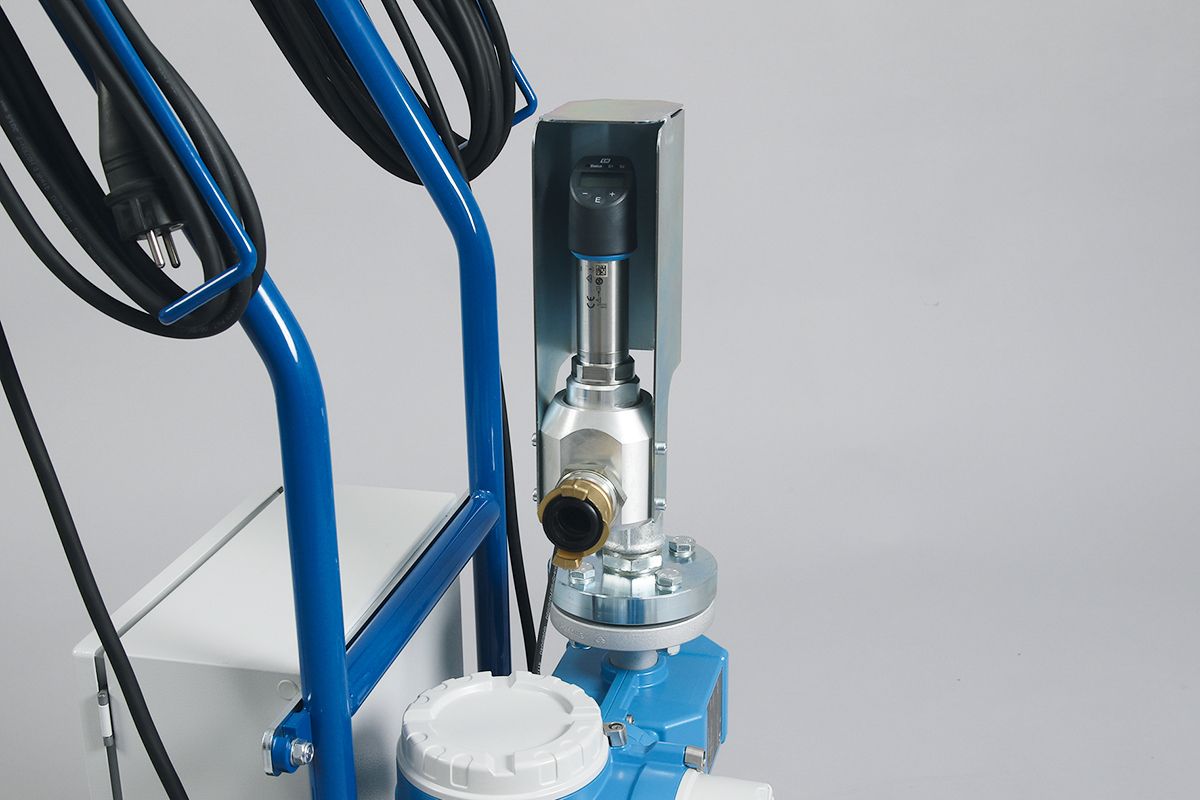

moving device, material hose connection at your option, flow sensor, pressure sensor, DESOI w.i.l.m.a.: control cabinet with integrated, control, 10 m supply cable, on/off switch, control lamp, Tablet Microsoft Surface Go 2 Platinum with protective cover, incl. instruction manual, A professional briefing is mandatory. This is free of charge, via video conference. On-site instruction is also possible by, arrangement and at a charge., A tariff must be selected for the w.i.l.m.a. data management system.
Vantaggio/Nota
  • Cementitious materials up to grain size 8 mm
  • Works well with most pump types and brands
  • Easy to clean
  • Carriage for easy portability
  • You can find more information on the application and process techniques with the DESOI w.i.l.m.a. in the STUVA ABI leaflet "Sealing of structures by injection", 4th edition - Part III/1.3.2 from p. 57.
Materiale in ingresso
  • injection mortar
  • cement paste
  • cement suspension
Dati tecnici
supply voltage (adjustable ex works) 110 - 230 V/ 0.5 ampere
storage type digitally on tablet
data transfer WLAN
measuring range - volume max. 100 l/ min
measuring range - pressure 0 - 40 bar
measurement accuracy ± 2 %
weight - control cabinet 8.62 kg
weight - tablet 0.68 kg
weight 40 kg
L x W x H - control cabinet 30 x 19 x 33 cm
L x W x H - tablet 22 x 14.5 x 2 cm
L x W x H 65 x 55 x 110 cm
Descrizione del prodotto

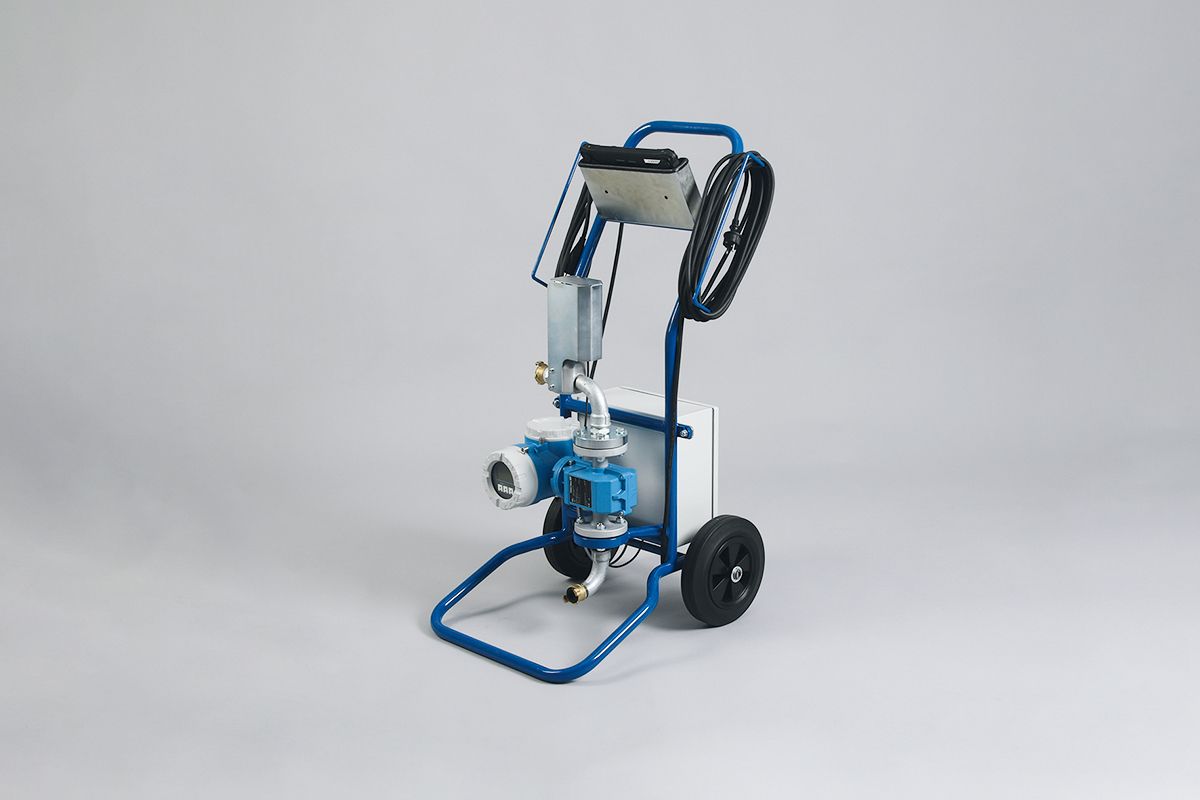

The DESOI w.i.l.m.a. - Z was conceived to monitor and record injection processes with cementitious materials. It can be combined with all corresponding DESOI injection devices as well as with products of other manufacturers. The DESOI w.i.l.m.a. - Z can be used for different water-cement mixes and is simple to clean using a cleaning ball. It monitors and records the material consumption and injection pressure.
