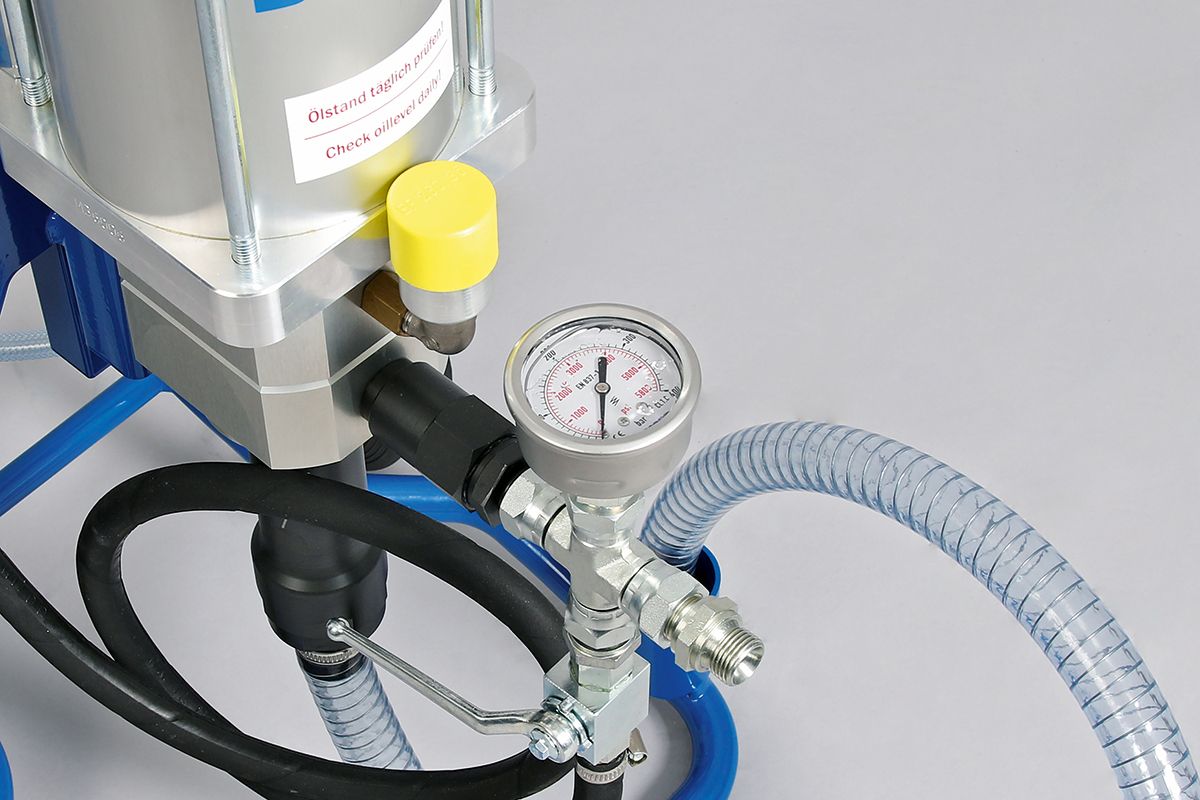

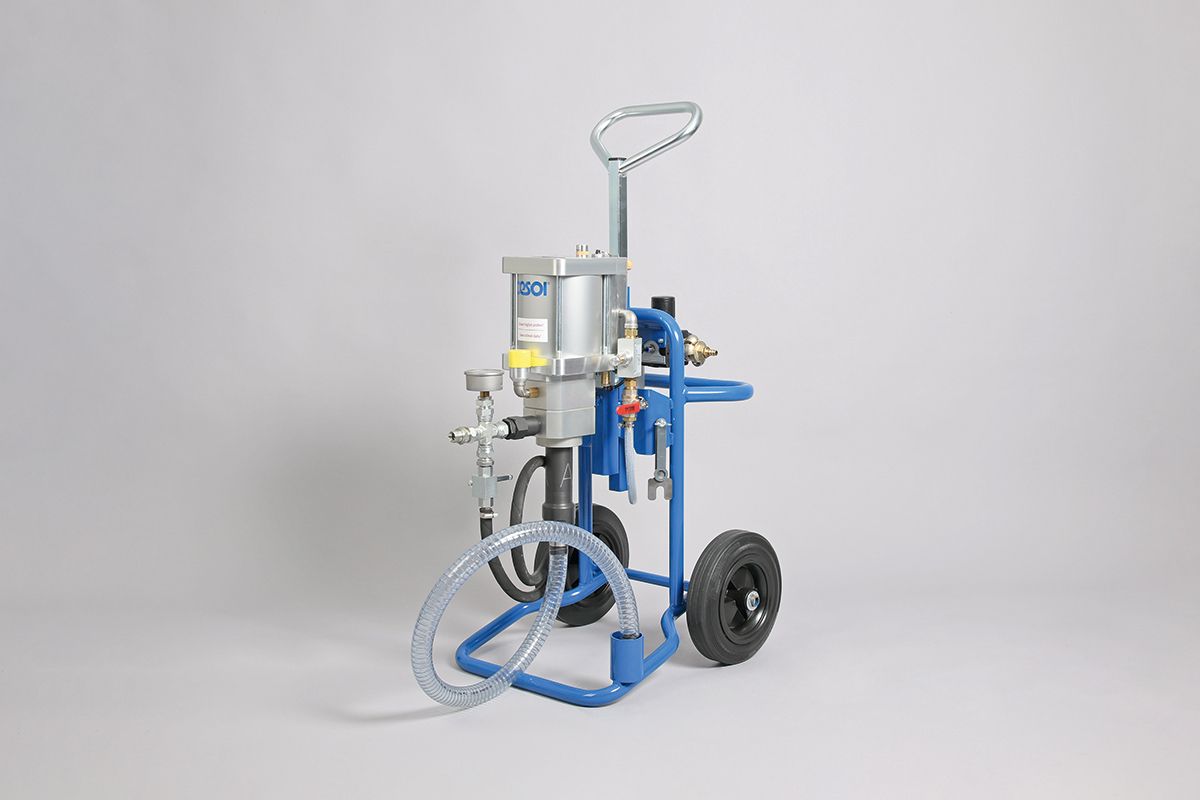

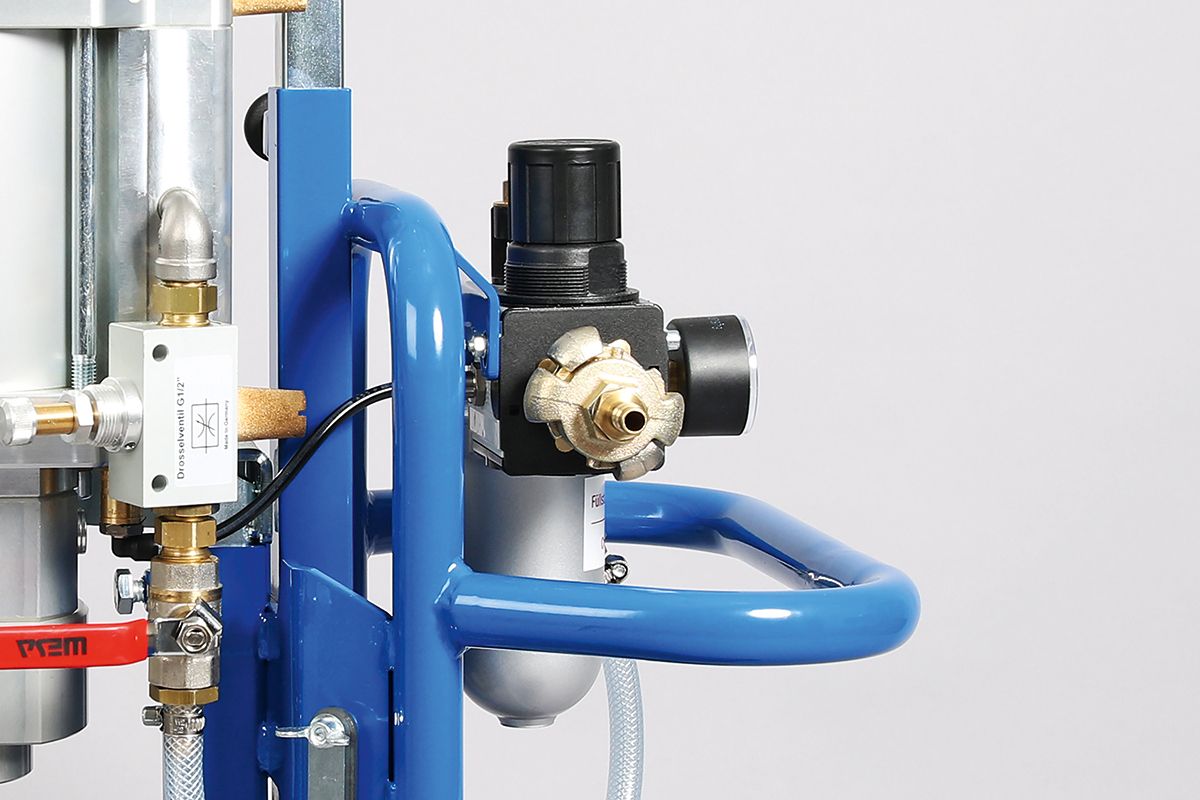

DESOI AirPower M36
Vantaggio/Nota
- Big material passages - for highly viscous material
- A tensioning of the piston sealings is not necessary
- Easy maintenance and repair
Materiale in ingresso
- epoxy resin
- polyurethane
- quick-foaming polyurethane
- aqueous solution
Dati tecnici
| Working pressure - infinitely variable | 18 - 192 bar |
| Delivery rate | 8.4 l/min |
| Air consumption | 900 l/min |
| Air pressure | max. 8 bar |
| Transmission ratio | 1:24 |
| Air consumption and delivery rate at 100 bar back pressure (injection pressure) | |
| Air consumption 210 l/min | Delivery rate 1.0 l/min |
| Air consumption 325 l/min | Delivery rate 1.5 l/min |
| Air consumption 425 l/min | Delivery rate 2.0 l/min |
| Air consumption 520 l/min | Delivery rate 2.5 l/min |
| Air consumption 610 l/min | Delivery rate 3.0 l/min |
| Weight | 37.5 kg |
| L x W x H | 64 x 48 x 84 cm |
Descrizione del prodotto
The pneumatic reciprocating pump DESOI AirPower M36 combines high capacity with compact design. Due to the directly mounted seals on the piston, retensioning is not necessary. The result is a very maintenance-friendly machine including suitable accessories.
Accessori
